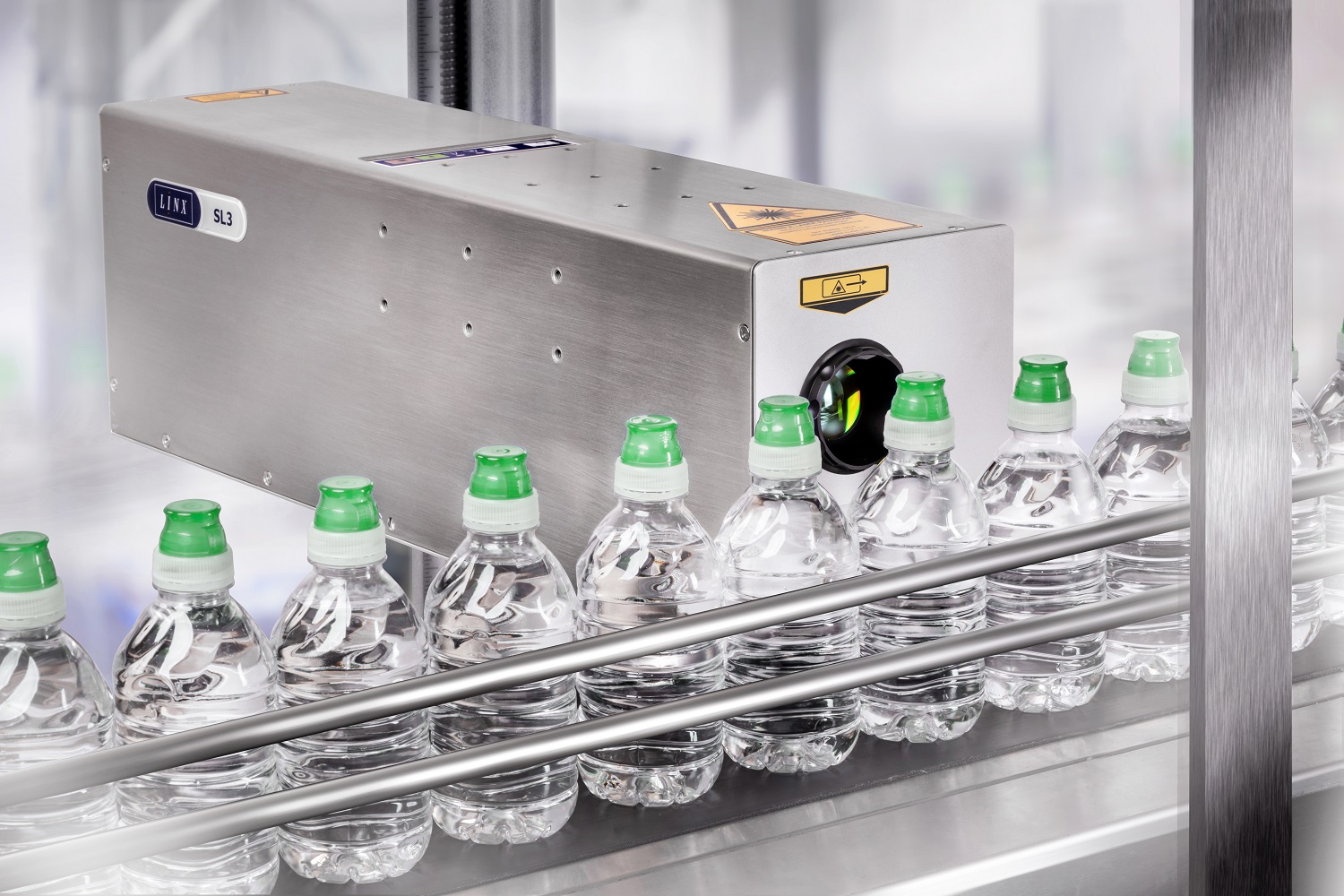

laser code pet bottle

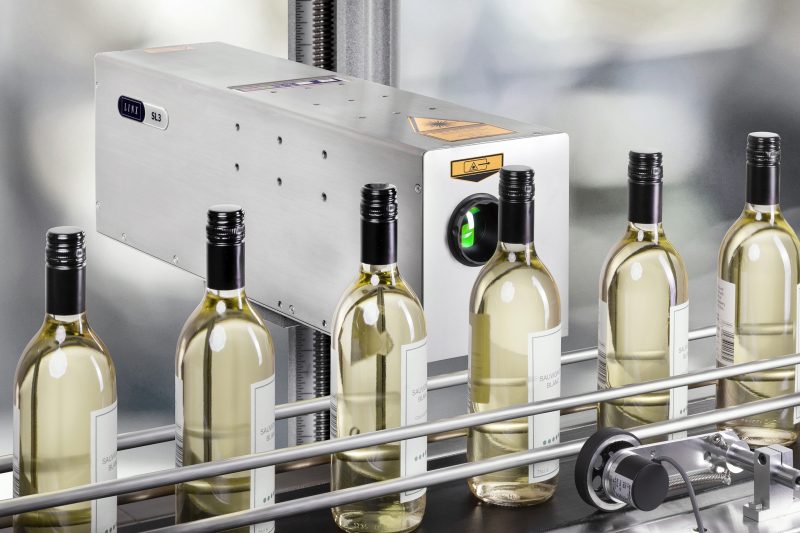

SL3 glass marking wine

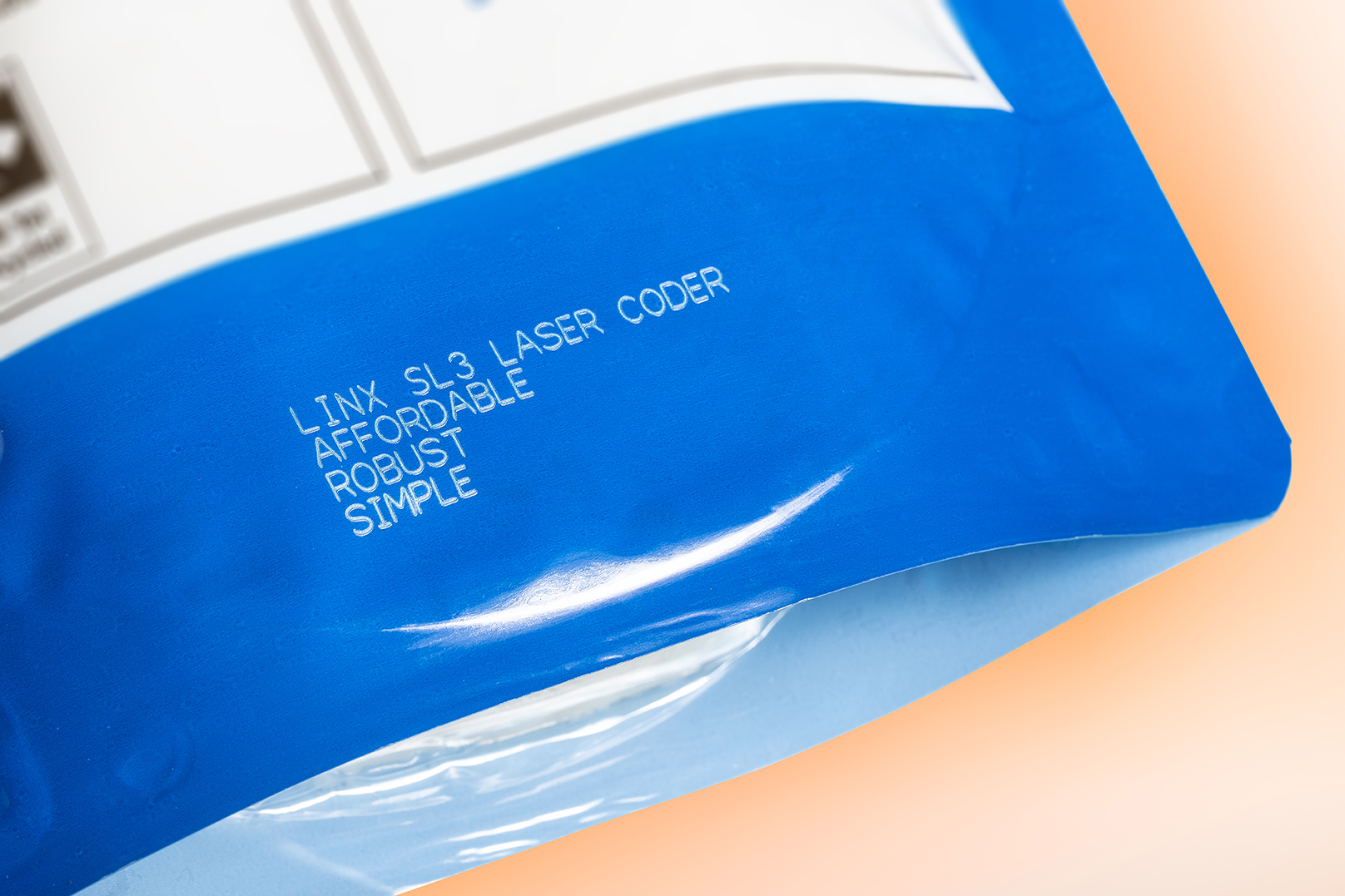

laser marking plastic pouch

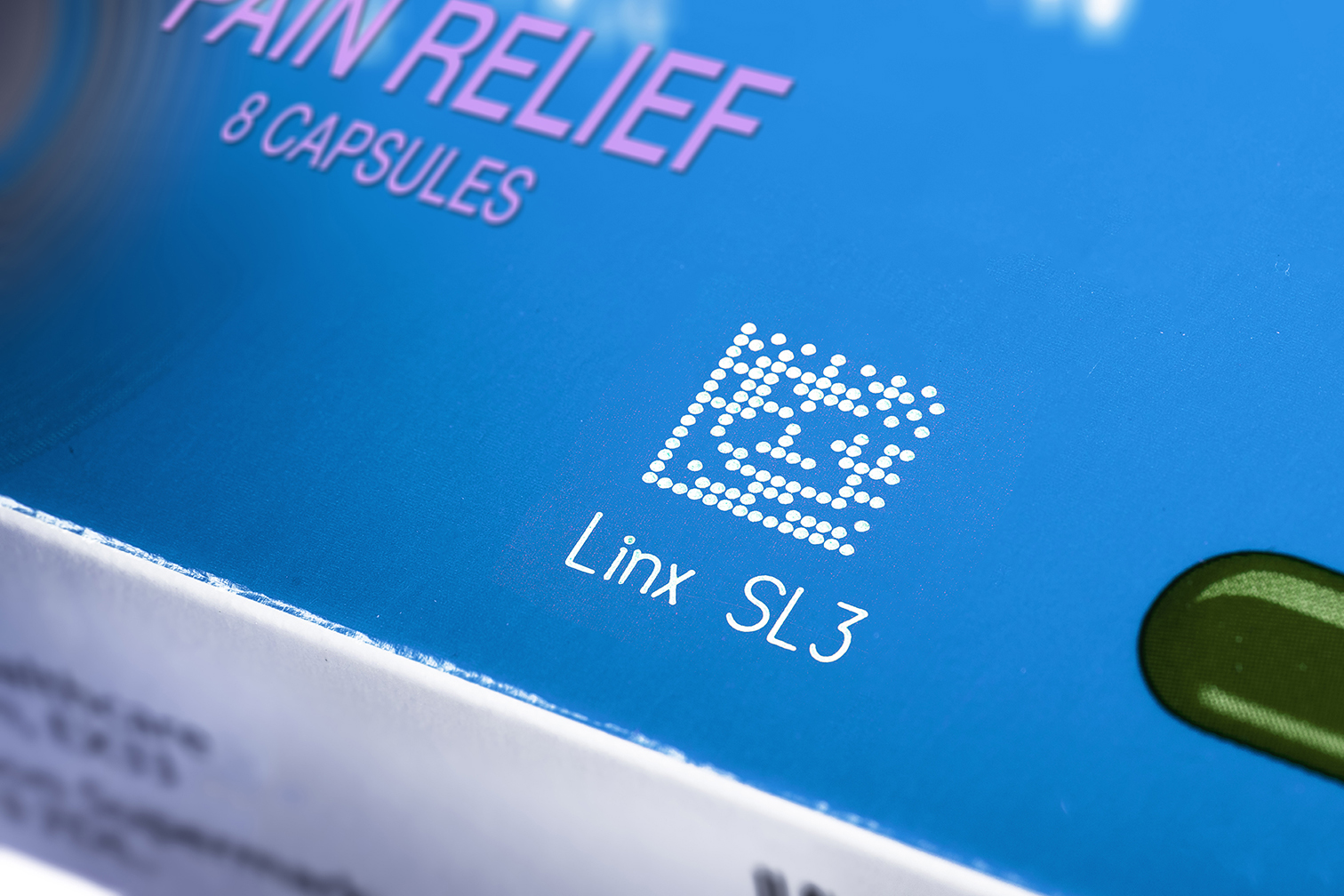

2D data matrix code laser

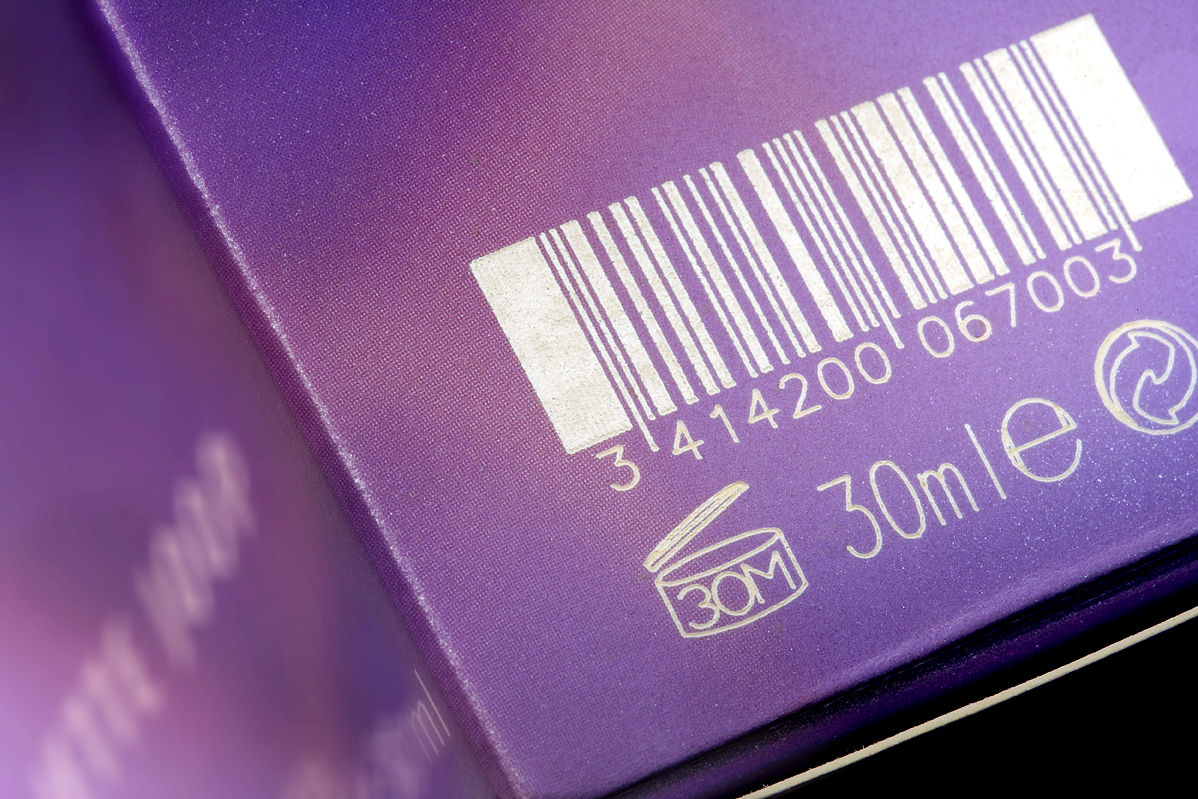

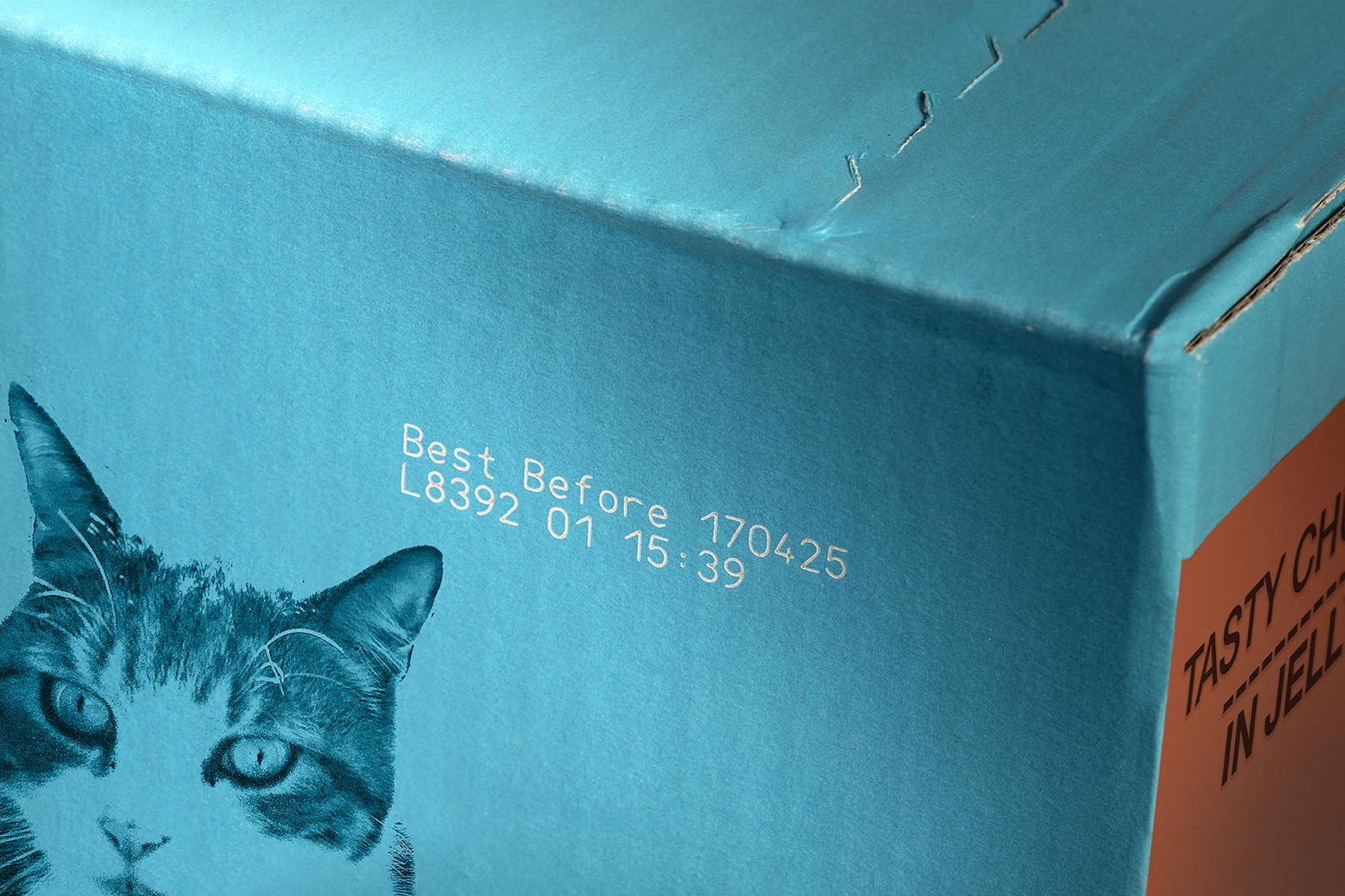

SL3 marking coated card

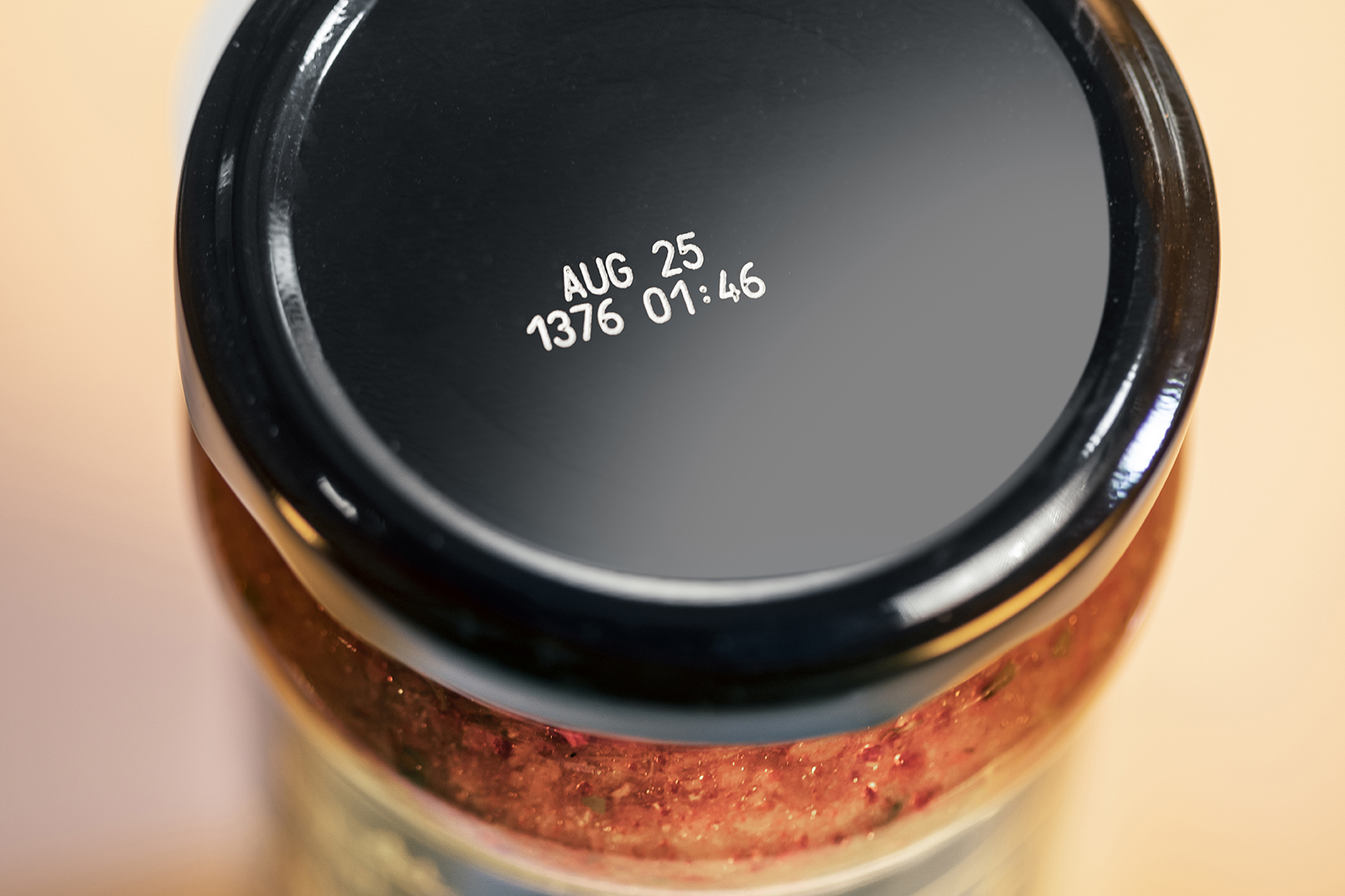

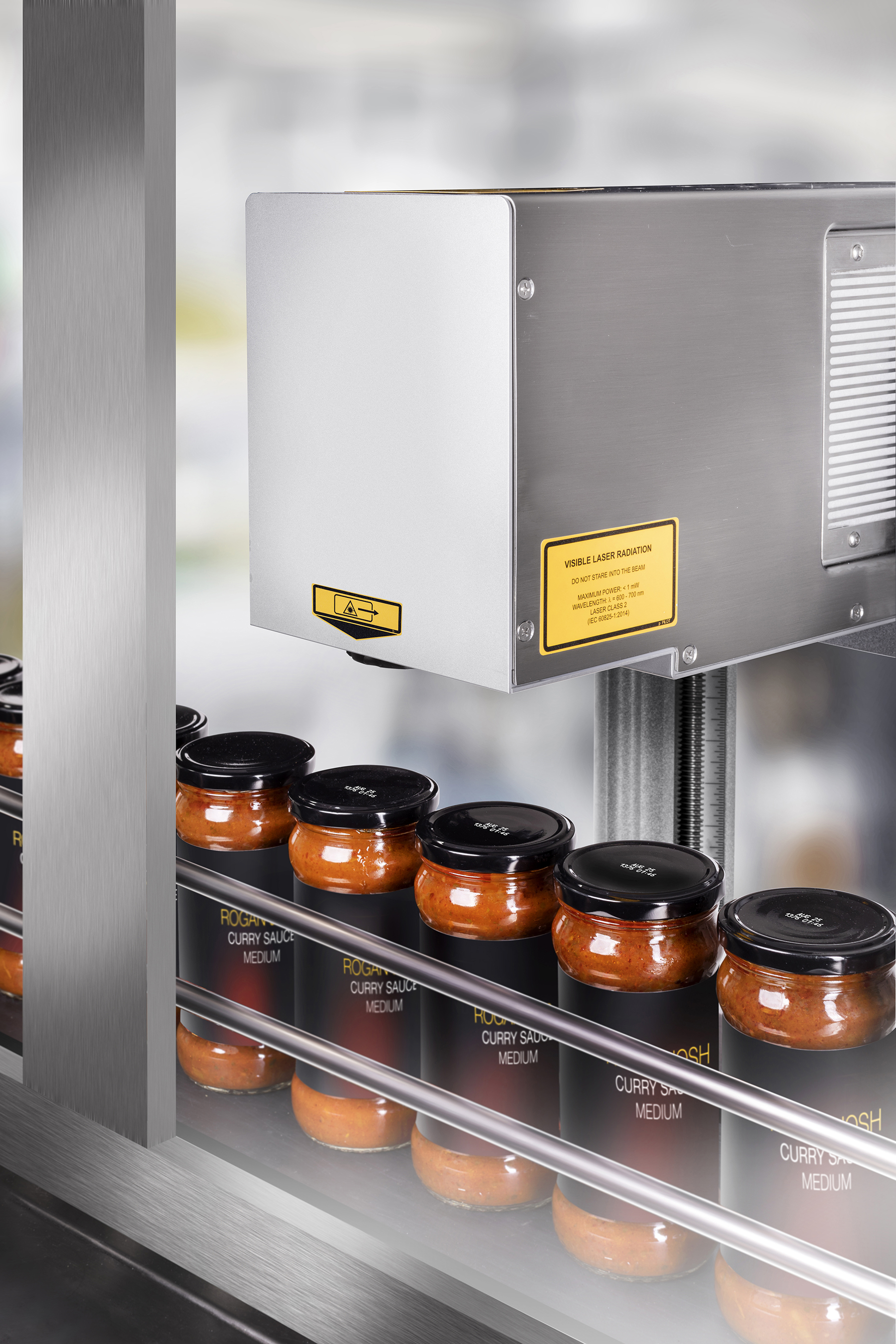

sl3 marking glass jars

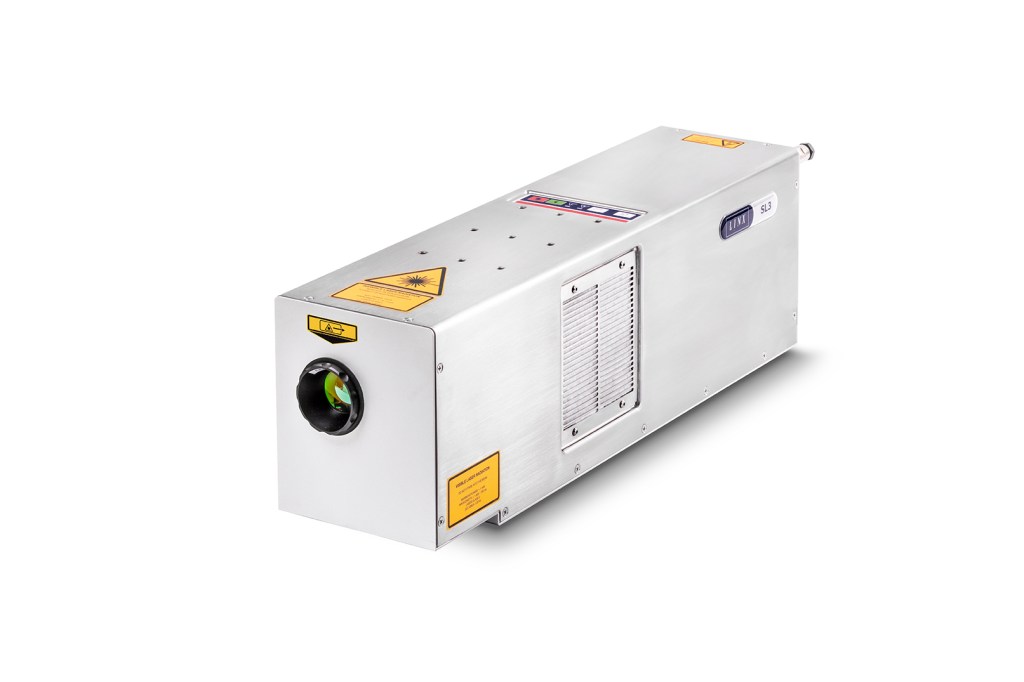

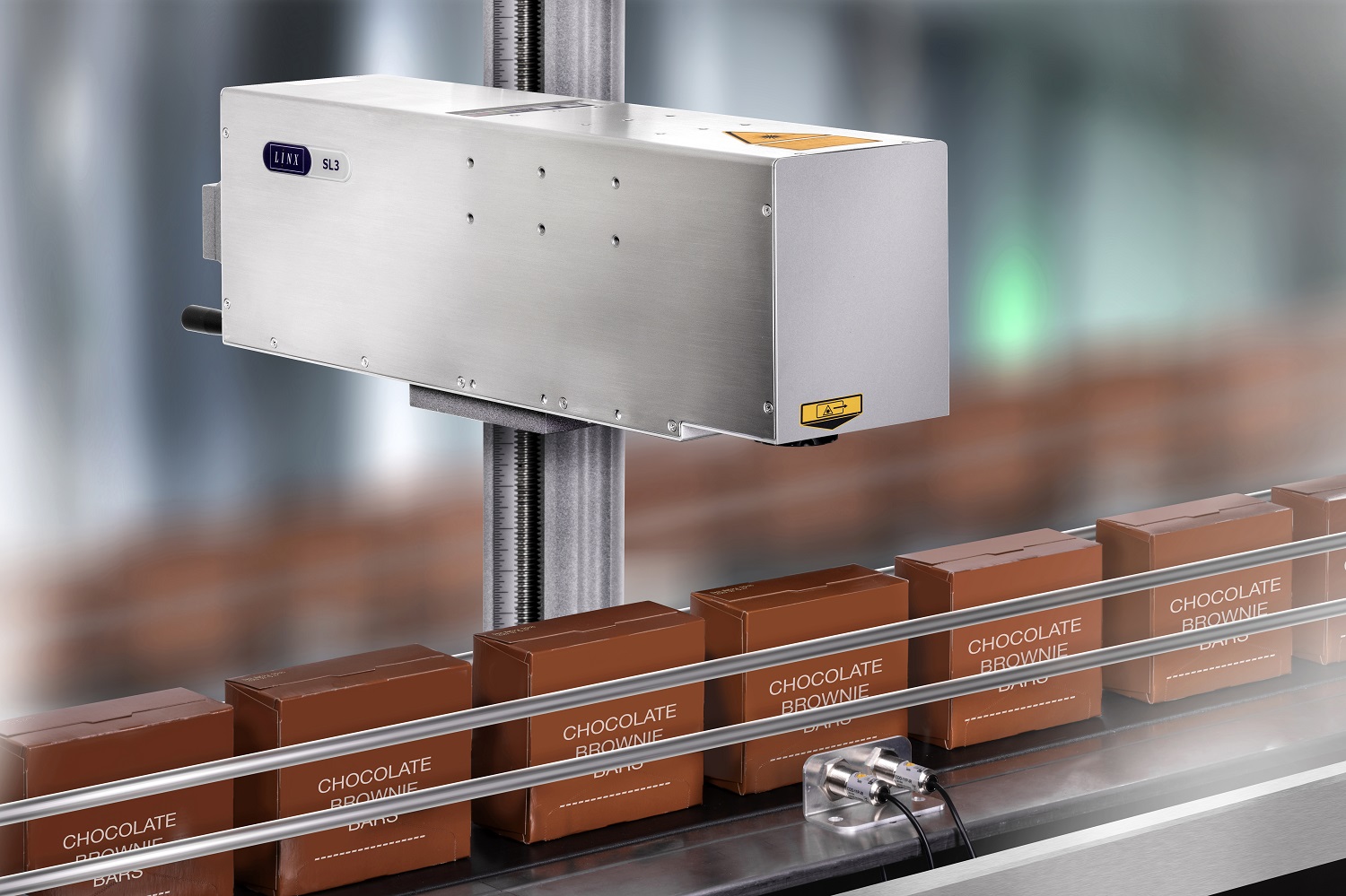

SL3 laser coder

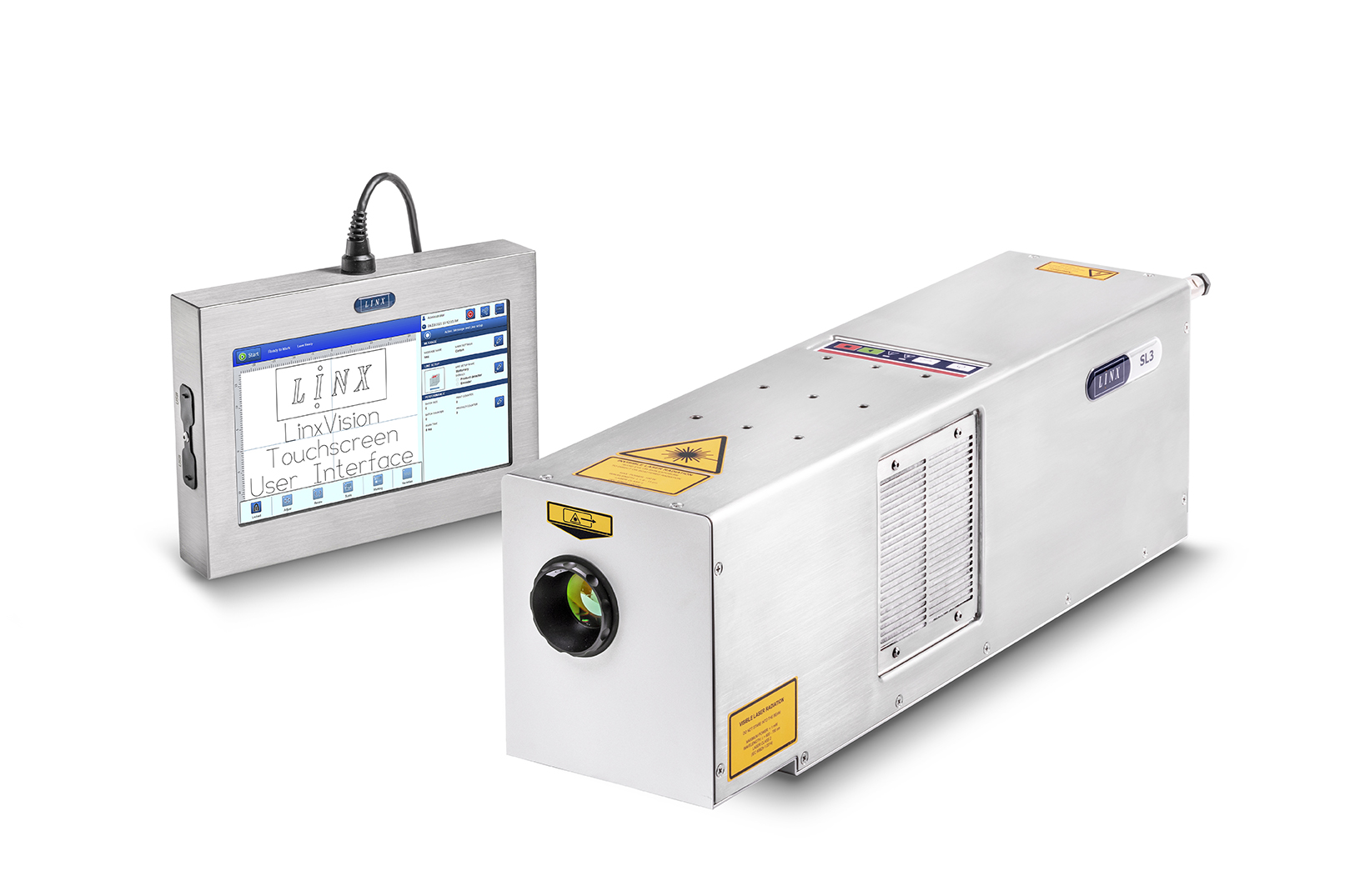

linx SL3 laser pc
laser marking glass bottle
laser marking plastic

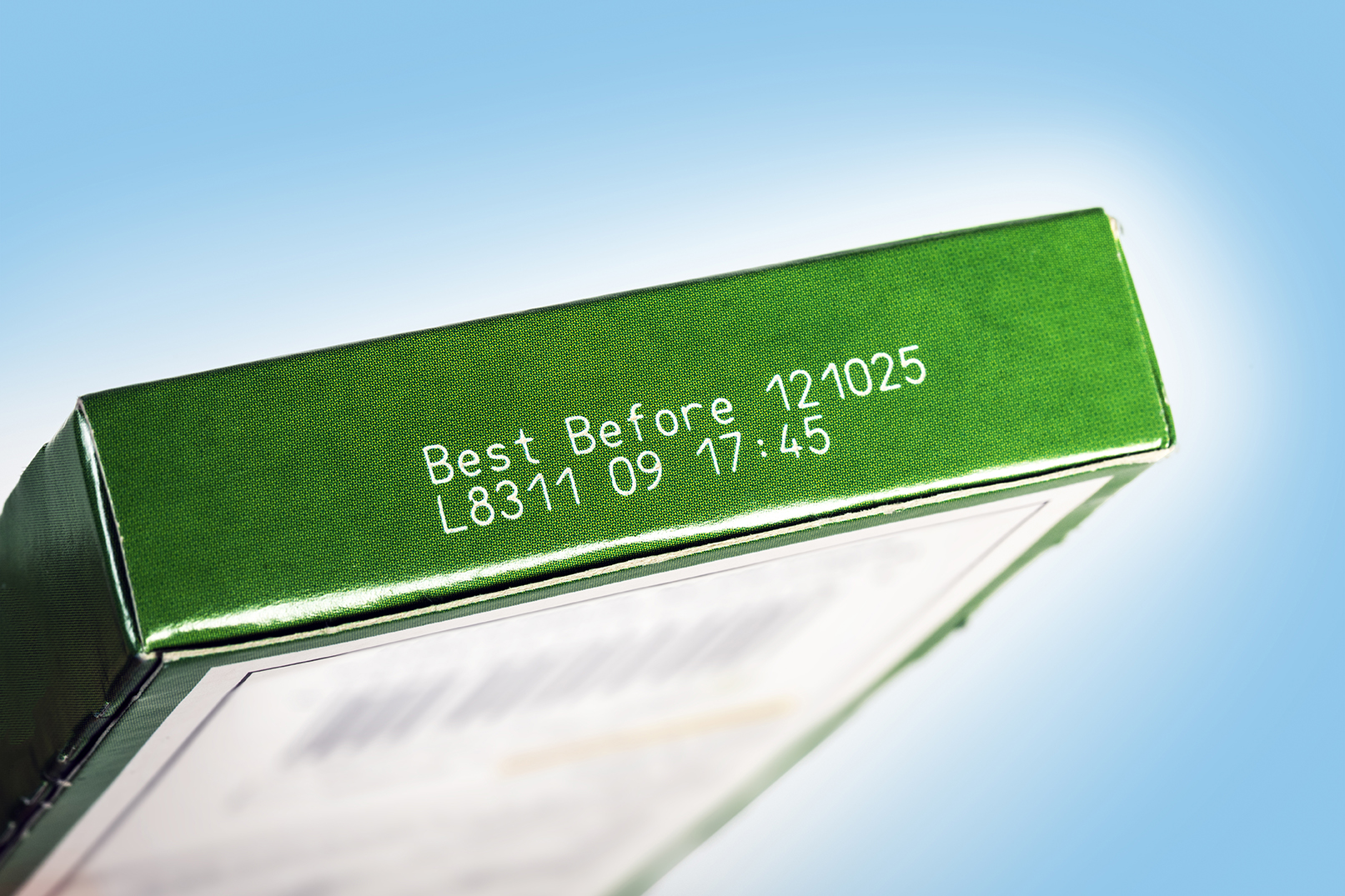

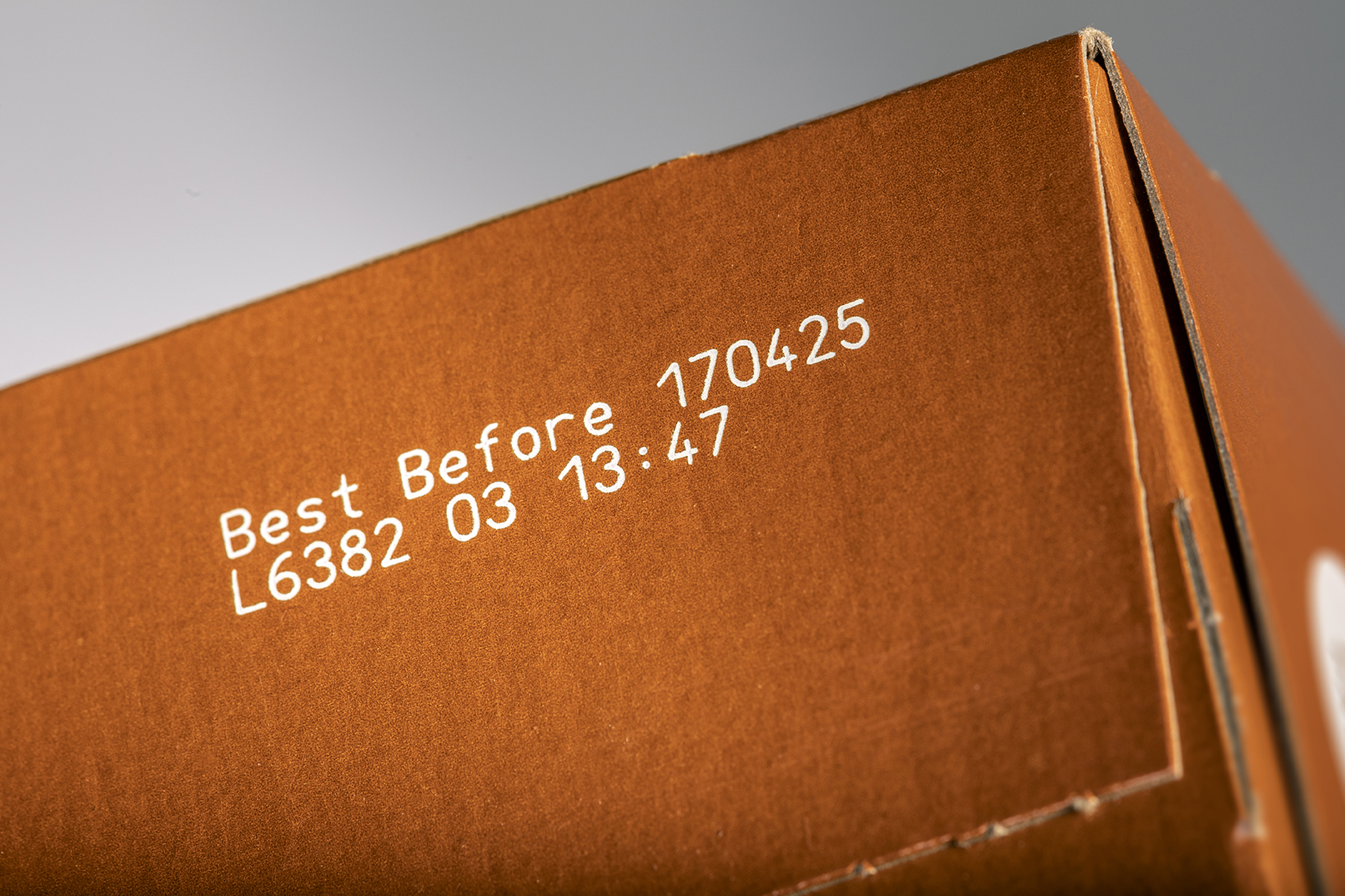

laser marking coated card

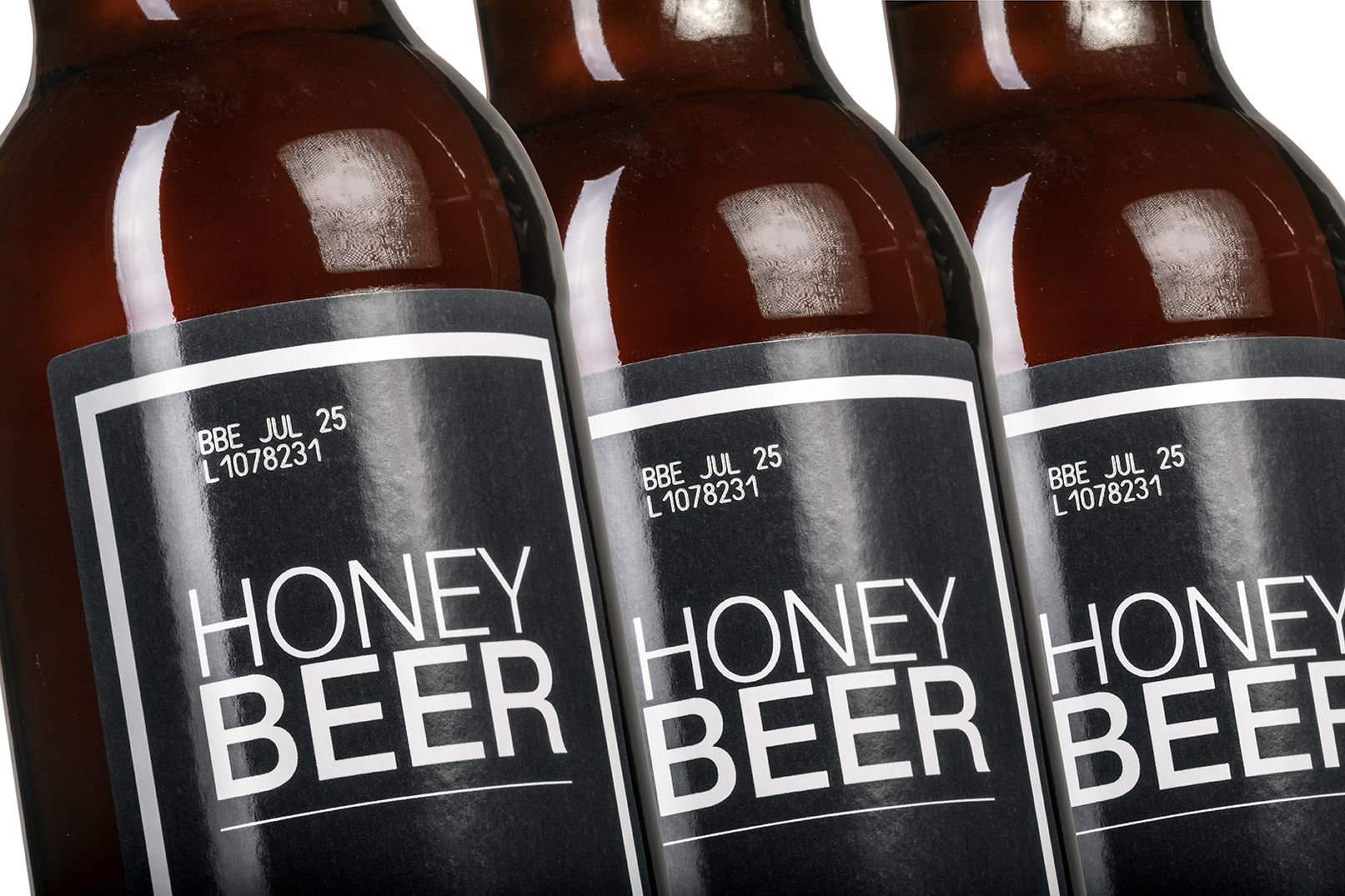

laser marking label

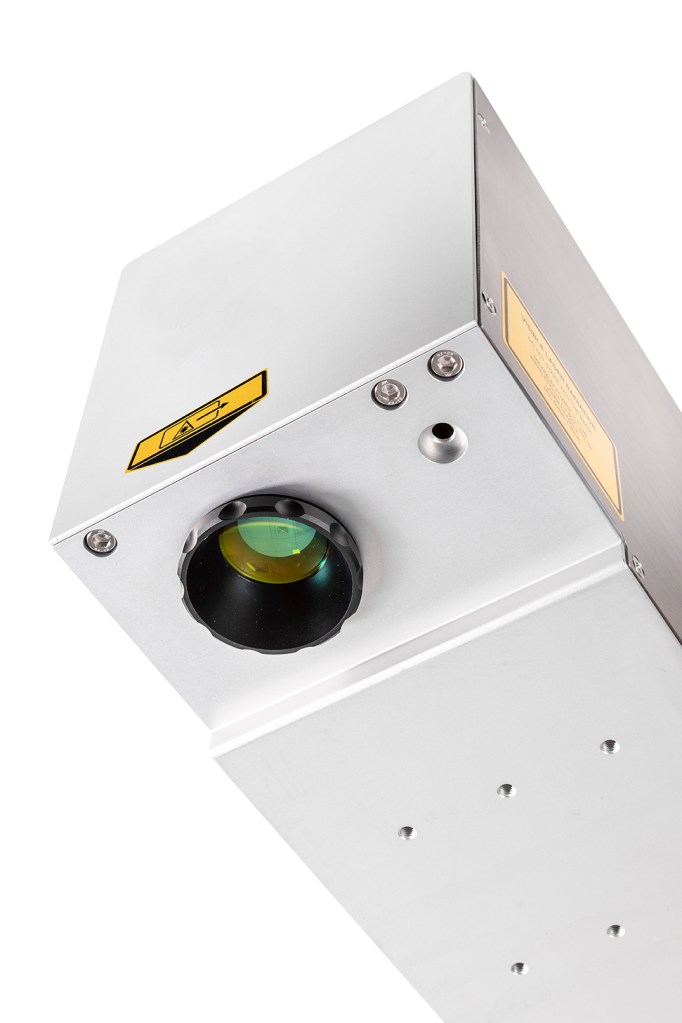

Linx SL3

30W compact and robust laser coder

The Linx SL3 Laser Coder is affordable, enabled by a single laser coding unit with flexible configurations to meet your needs.

Simple to install and easy to maintain, the Linx SL3 provides an ideal marking solution onto a wide range of products.

With its IP54 rated enclosure and proven laser technology, the Linx SL3 operates reliably in manufacturing environments, maximizing production output.

Key benefits

Affordable

  • Compact, complete laser coder in a single unit that meets your coding needs at an affordable price
  • Operates without any consumables to minimise your running costs.
  • Flexible user interface options to control your laser.

Robust

  • IP54 stainless steel and anodised aluminium enclosure to withstand your manufacturing environment.
  • Established and proven laser tube and marking head technology provide reliability and confidence.
  • Operates without interconnections improving laser reliability through eliminating possibilities of interconnection failure or damage.

Simple

  • Multiple mounting positions and orientations support simple and compact installations.
  • Single unit installation reduces production line space usage and installation time.
  • Easy and minimum maintenance increases production time and reduces running costs.

Resources

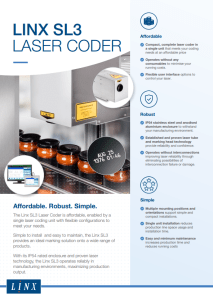

SL3 Datasheet

SL3 Datasheet

Download Datasheet
SL3 Infographic

SL3 Infographic

Download Infographics
SL3 Video

SL3 Video

Play Video

Key features

Speed: This simple and robust, CO2 30W laser coder has the ability to code up to a maximum marking speed of 360 meters per minute, which will cover a wide range of production lines.

Materials: The majority of materials can be effectively marked with a laser coder, including glass, metal, plastic and paper/card.

Rating: The IP54 rating of the stainless steel and anodised aluminium enclosure makes the unit secure from water splashes from any angle.

Warranty: With its two-year laser tube warranty, the coder ensures optimised production output and reliability, whilst reducing total cost of ownership.

Consumables: With no consumable the total cost of ownership is reduced.

Connections: The laser coder operates without interconnections, so the risk of accidental damage to the cables by twisting or chemical reaction is eliminated.

Target industries: the SL3 laser coder operates in a wide range of production environments but its abilities are especially suited to the beverage, packaging materials, home and personal care, and OEM installations.

Software: Using the latest LinxVision® Software the SL3 laser coder provides easy access operator toolbar with a range of fonts, options and operating languages.

Installation: Weighing in at 21kg, the single unit integrates easily onto production lines and systems making it simple to install. The space required to house the coder, together with the installation time needed, are minimised, meaning less upheaval for already pressed production schedules.  Its multiple mounting positions and orientations, together with flexible user interface options including a choice of operating languages and password protection levels, gives total control of the laser.

Technical Specifications

  • CO2 scribing laser coder
  • Line speed - up to 360 m/min (code and substrate dependent)
  • Maximum laser output power at lens - 30W
  • Maximum marking speed [2mm characters/s]: 1300 m/min *
  • Marking ellipse [mm]: 51 x 80; 76 x 120; 102 x 160
  • Marking distance [mm]: 92; 141; 190
  • Number of lines of text - only limited by character size and marking field size
  • Character height - up to marking field size
  • Print rotation – 0-360°
  • Head mounting options: down (90°) or straight (0°)
  • Pilot Laser: available as standard
  • Focus Finder: available as standard
  • Mounting: On 3 sides of laser
  • Code options: Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D codes including DotCode
  • Laser tube wavelengths - 10.6 µm, 10.2 µm or 9.3 µm
  • IP rating - IP54 as standard
  • Air cooled - not factory air
  • Laser tube warranty – 2 years

Get in touch to discuss how Linx can support your coding and marking needs
