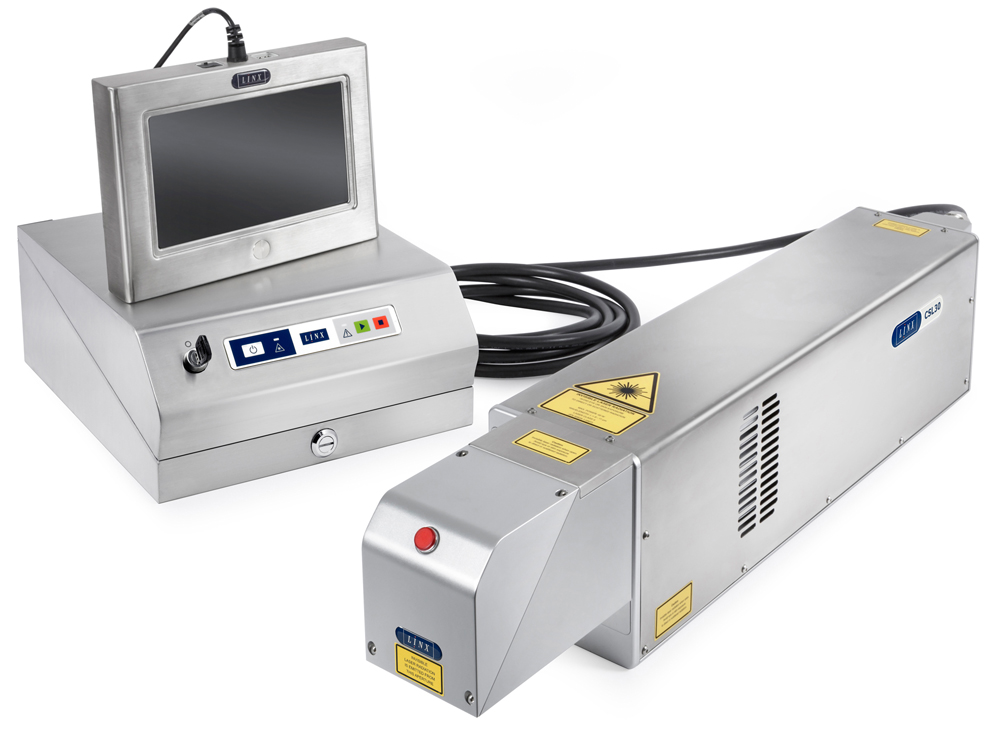

Marking unit, supply unit and touchscreen of the Linx CSL30 coder
Technical support team

Linx CSL30

Largest marking area in its class

The Linx CSL30 laser coder produces sharp codes on fast lines, and even on hard to mark materials such as glass and rubber. It's been designed to keep up with your coding requirements as they change - line speed, code complexity, or material types -  with no additional investment needed.

Key benefits

Easy to use

  • Easy line integration – detachable marking head with quick disconnect cables
  • Multiple beam delivery options allow for coding in any orientation
  • Easy message creation and management of printing parameters with the large colour LinxVision® Touch Screen, and LinxVision software
  • Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only

Meet production targets

  • Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market
  • Service intervals typically twice that of the industry standard
  • A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos - on fast lines with no compromise on code quality
  • No expensive factory air for cooling

Print in more applications

  • Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters
  • Flip, mirror or curve text – easily code onto difficult shapes
  • Over 20,000 different configurations to economically meet your coding requirements
  • Wide web applications for large area coding or multiple lines of products
    *tube life is application dependent

Resources

CSL30 Datasheet

CSL30 Datasheet

Download Datasheet
Laser Coding Solutions Brochure

Laser Coding Solutions Brochure

Download Datasheet
Laser Marking Technologies

Laser Marking Technologies

Read More
VisiCode Datasheet

VisiCode Datasheet

Download Datasheet
Linx CSL30 coding onto card boxes

Linx CSL30 coding onto card boxes

Play Video
Wolds Manufacturing Case Study

Wolds Manufacturing Case Study

Read More

Technical Specifications

Coding and marking capability icon

Coding and marking capability

  • CO2 scribing laser coder
  • Line speed - up to 900 m/min (code and substrate dependent)
  • Maximum laser output power at lens – 30 W
  • Lens and head options (range):
  • Spot Size 0.12 mm – 1.6 mm
  • Marking Field 29 mm x 36 mm to 440 mm x 601 mm (wide web application)
  • Mark distance 67 mm – 576 mm
  • Number of lines of text - only limited by character size and marking field size
  • Character height - up to marking field size
  • Print rotation – 0-360°
  • Marking head rotation – 0-360°
  • Code options: date, time, static text, variable text, serial numbers, alphanumeric, shift codes, increment/decrement (batch count), ID Matrix 2D codes, barcodes, QR codes, graphics and logos, Julian dates, custom date and time formats
  • Laser tube wavelengths - 10.6 µm, 9.3 µm, or 10.2 µm
  • Marking head options – 4 marking heads available as standard
  • Versatile Beam delivery options for easy integration into your production line:
  • Down (90°) or Straight (0°) Shooter
  • 360° Beam Extension Unit (BEU)
  • Variable length Beam Turning Unit (BTU)
  • IP rating - IP54 as standard, IP65 option
  • Air cooled - not factory air
  • Large volume gas tube can last in excess of 45,000* hours
  • Laser tube warranty – 2 years
    *Tube life may vary according to application.
